Auto Convex Shape

Warning

Auto Convex is currently only supported for Windows

Auto Convex is a tool for generating convex colliders for complex meshes. It's especially useful for organic shapes like rocks, statues, and debris. While it's not a one-click solution for every asset, it’s a powerful tool for organic models.


Basic Parameters

Control the number of convex hulls and their complexity through these settings, which appear in a popup when you activate Auto Convex:

Parameter Description Default Range
Shrinkwrap Shrinkwrap output to source mesh False False/True
Hulls Maximum number of output convex hulls 8 1-4096
Verts per Piece Maximum vertices in the output convex hull 16 8-1024
Voxel Resolution Total number of voxels used 100,000 100,000-10,000,000


These parameters are from the original library used: V-HACD on GitHub.


Advanced Parameters

Advanced parameters can be found in the addon preferences under Auto Convex. Access preferences directly by pressing the gear button next to "Auto Convex."


  • Overwrite Executable: Specify a custom V-HACD executable path if needed.
  • Temporary Data Path: Set a path to store temporary files like meshes and logs used by V-HACD during collider generation.

Additional advanced settings:

Parameter Description Default Range
Volume Error Percentage Allowed volume error percentage. Default is 1%. 0.01 0.001-10
Min Voxel Edge Size Minimum voxel edge size. 2.0 1.0-32.0
Max Recursion Depth Maximum recursion depth, determining the maximum number of convex hulls (e.g., depth of 12 results in up to 4,096 hulls). 4 2-64
Fill Mode Method used to find interior voxels for auto convex creation (Raycast, Flood, Surface). Raycast Raycast/Flood/Surface
Optimal Split Plane If true, finds the optimal split plane location. Otherwise, splits hulls in the middle. False True/False

These parameters also come from the V-HACD library.

For detailed documentation on the library, refer to the Voxelized Hierarchical Convex Decomposition - V-HACD version 4.

Fix Linux Permission

VHACD requires execute permissions to enable Auto Convex collision generation in Blender.

Symptoms of Missing Permissions - A red input field for the Default VHACD Build in Simple Collider preferences. - An info panel warning when attempting to use Auto Convex in your scene.

  1. Locate the VHACD Executable
  2. Navigate to: Edit > Preferences > Add-ons > Simple Collider.
  3. Click "Open Folder" to go directly to the executable (vhacd_4_1_linux_amd64).

alt text

  1. Set Execute Permissions

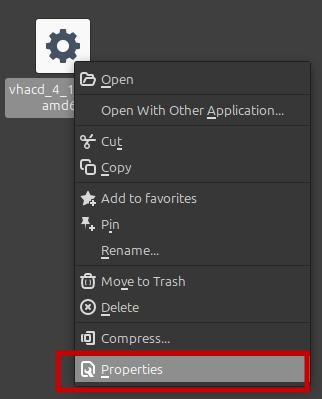

  2. Right-click the executable and select Properties.

alt text

  • Go to the Permissions tab.
  • Enable Allow executing file as program.

alt text

  1. Verify the Fix
  2. The red input field in preferences will disappear.
  3. Auto Convex collision generation will now work.

Note: This process is specific to Linux Mint and similar distributions. If you encounter further issues, ensure the executable path is correctly referenced in Simple Collider settings.
